Part Number	Voltage	Amps	Cord Length	Float Type

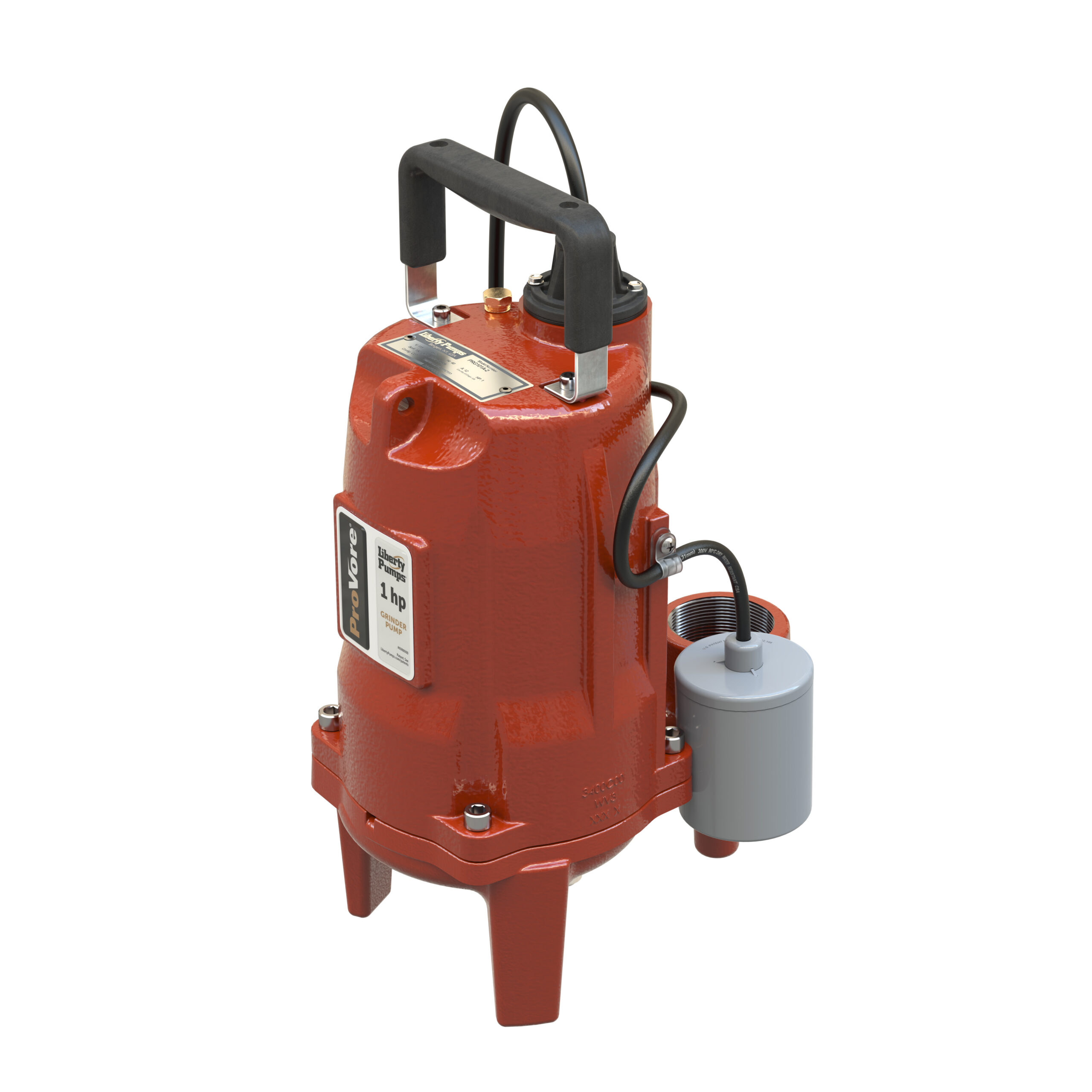

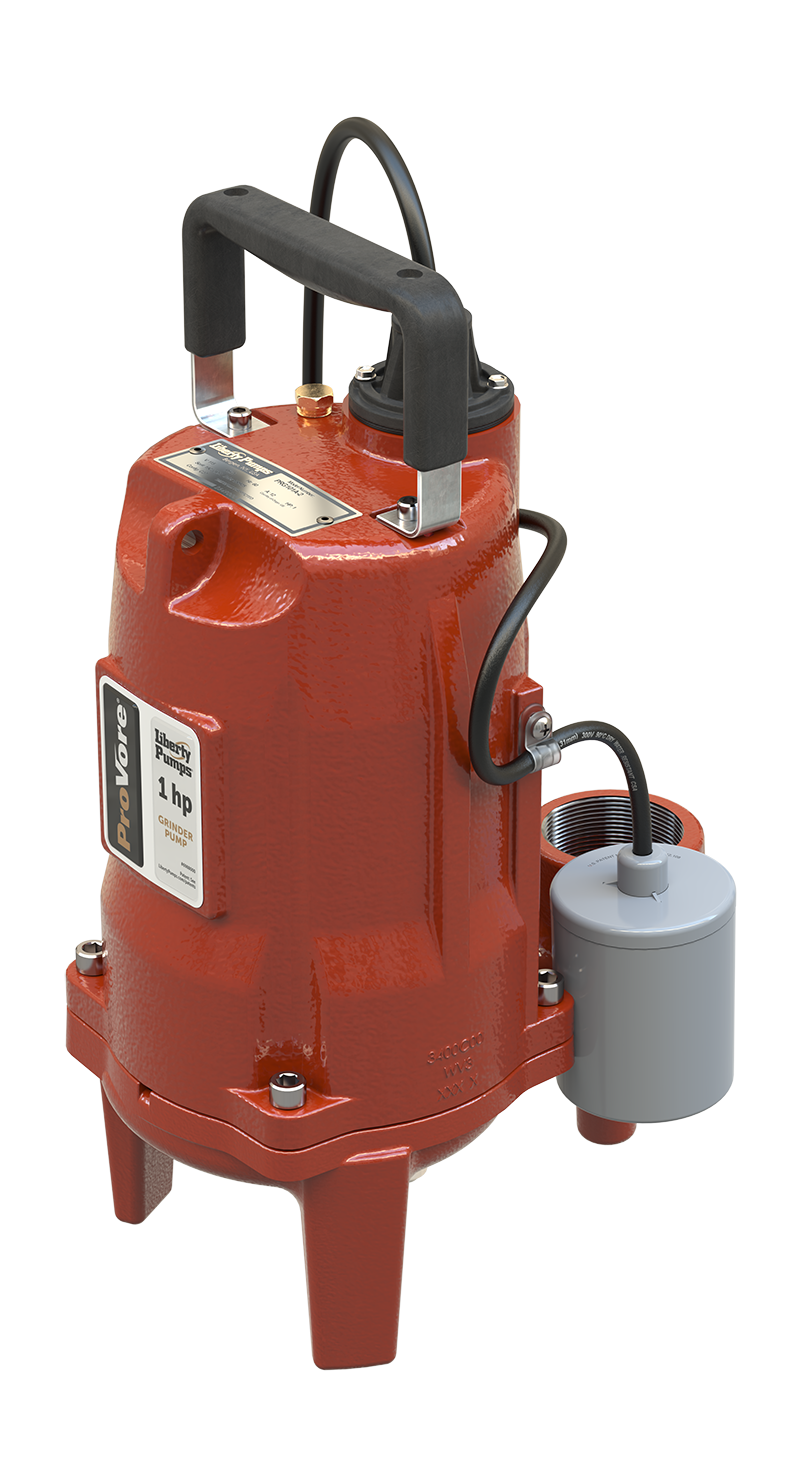

PRG101A	115	12	10	Automatic – Wide Angle – Piggyback
PRG101A-2	115	12	25	Automatic – Wide Angle – Piggyback
PRG101A-5-Y-BL	115	12	50	Automatic – Wide Angle

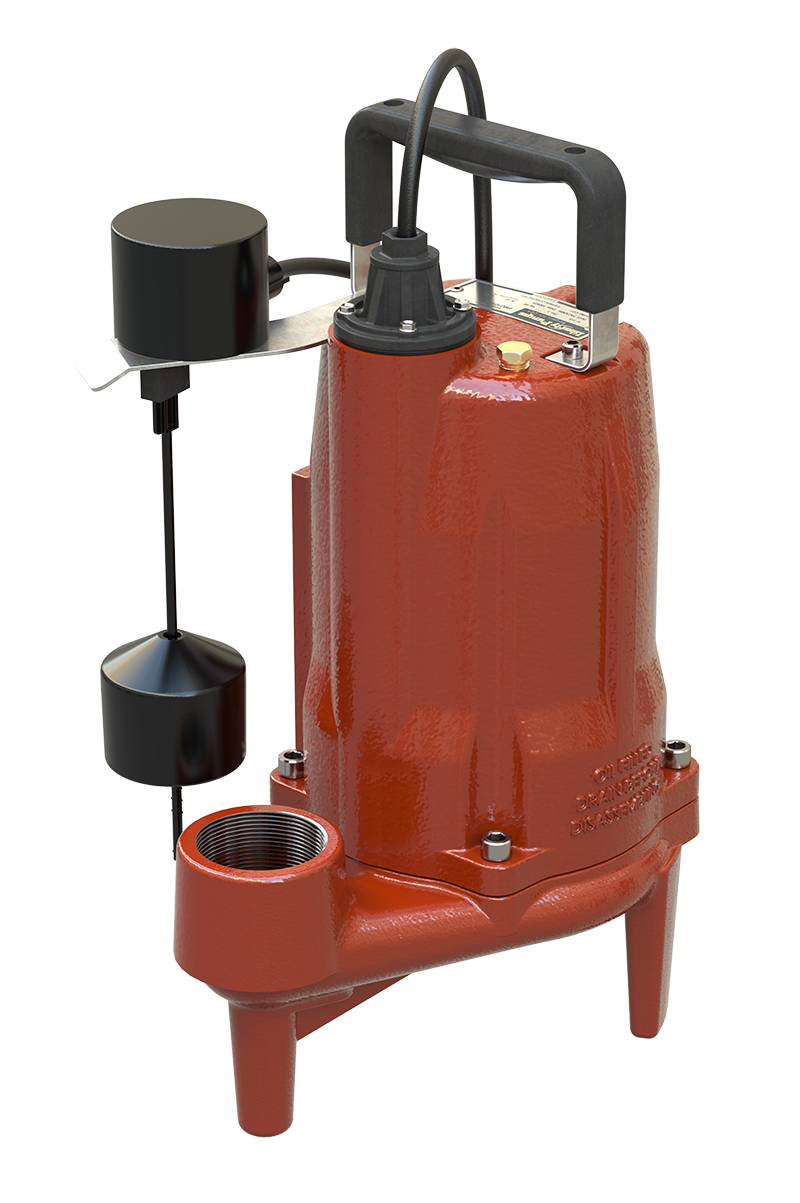

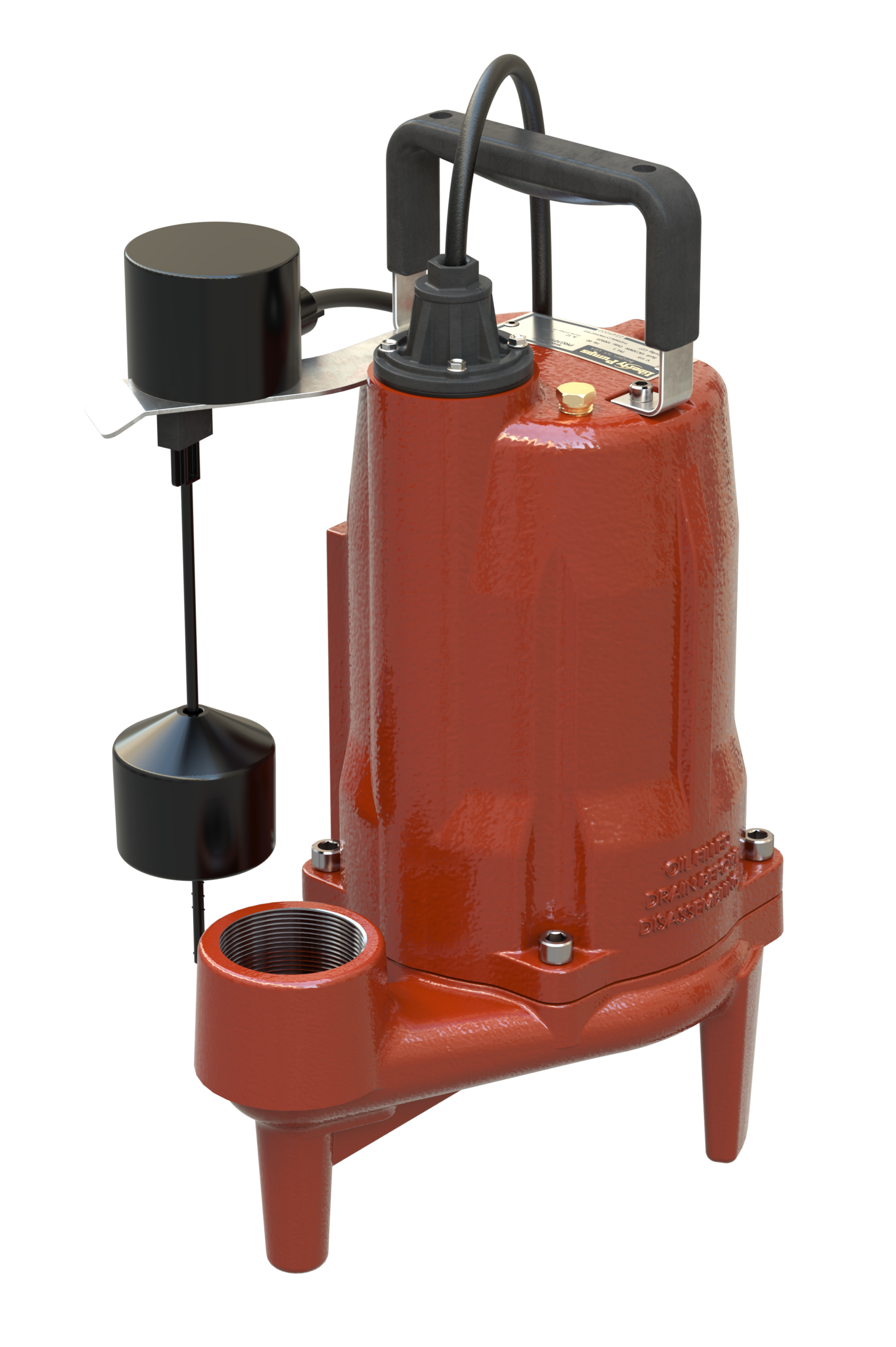

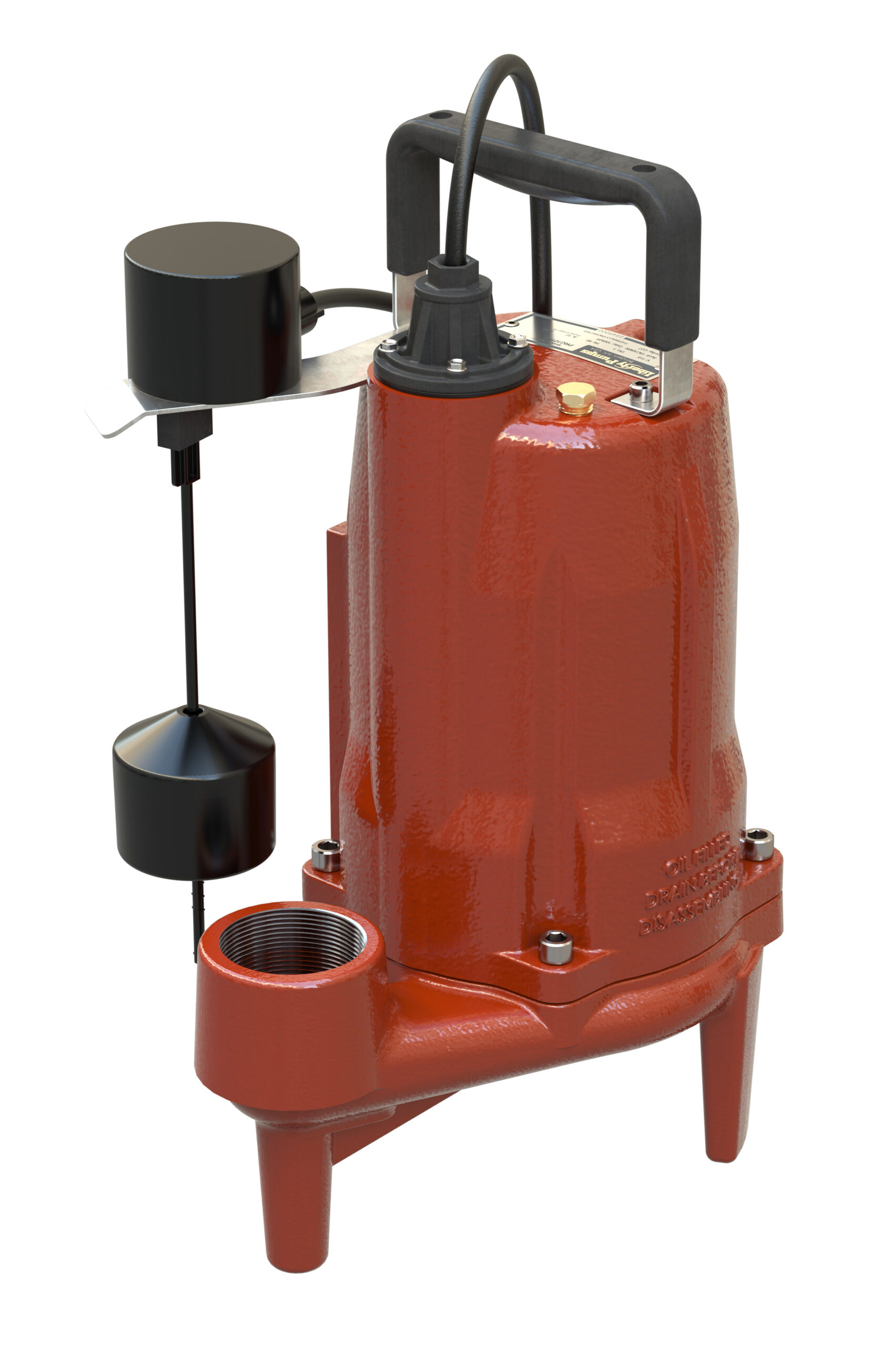

PRG101AV	115	12	10	Automatic – Vertical
PRG101AV-2	115	12	25	Automatic – Vertical

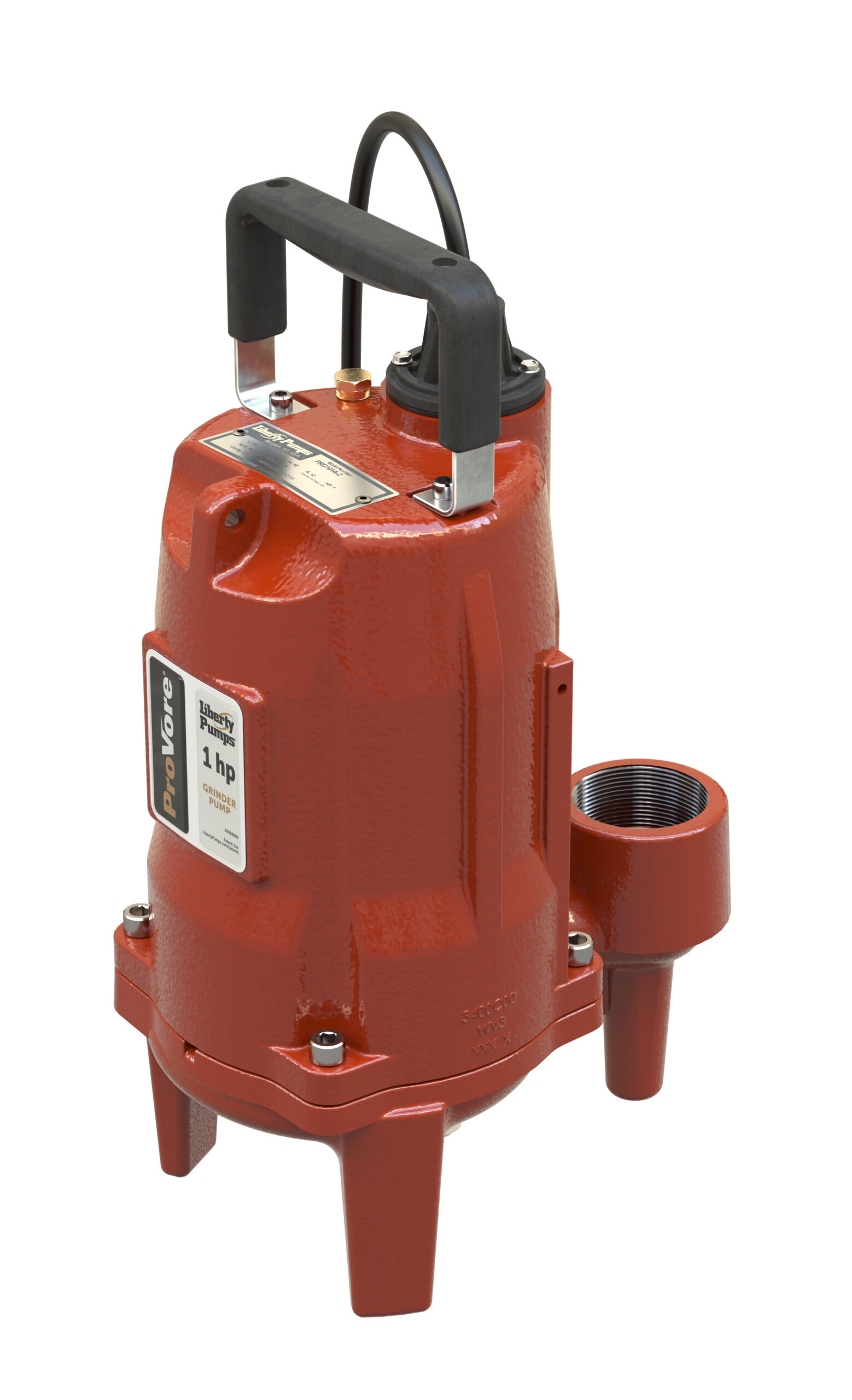

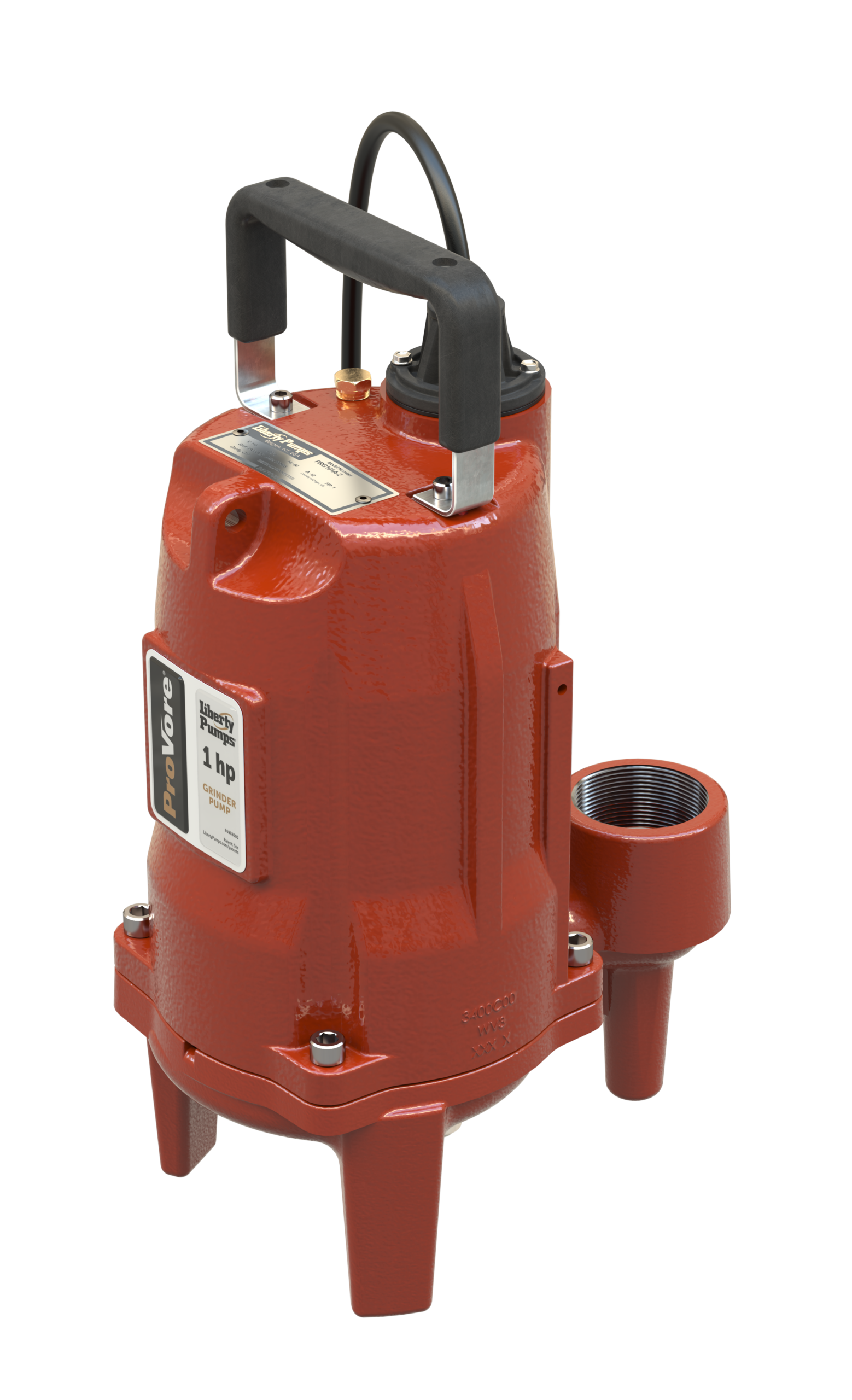

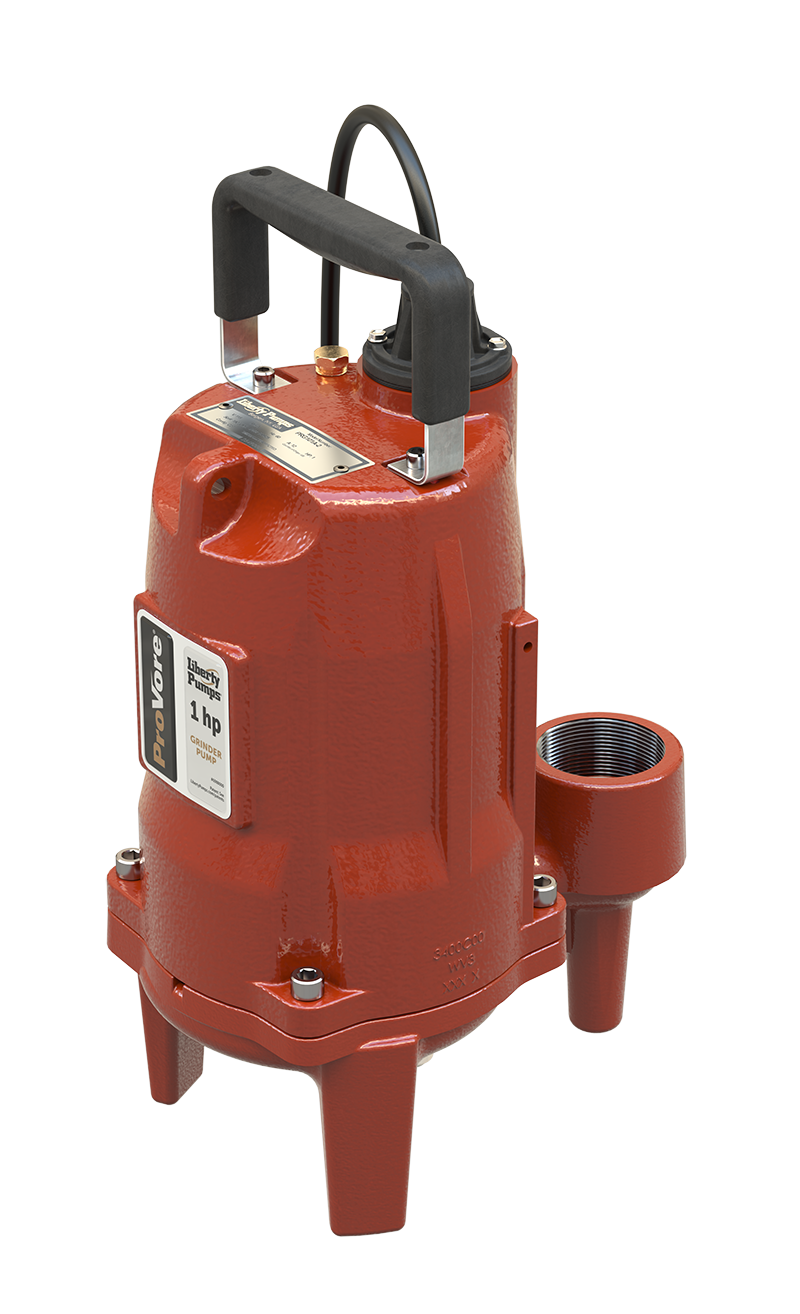

PRG101M	115	12	10	Manual
PRG101M-2	115	12	25	Manual
PRG101M-5	115	12	50	Manual
PRG102A	208-230	6	10	Automatic – Wide Angle – Piggyback
PRG102A-2	208-230	6	25	Automatic – Wide Angle – Piggyback
PRG102A-5-Y-BL	208-230	12	50	Automatic – Wide Angle
PRG102M	208-230	6	10	Manual
PRG102M-2	208-230	6	25	Manual
PRG102M-5	208-230	6	50	Manual

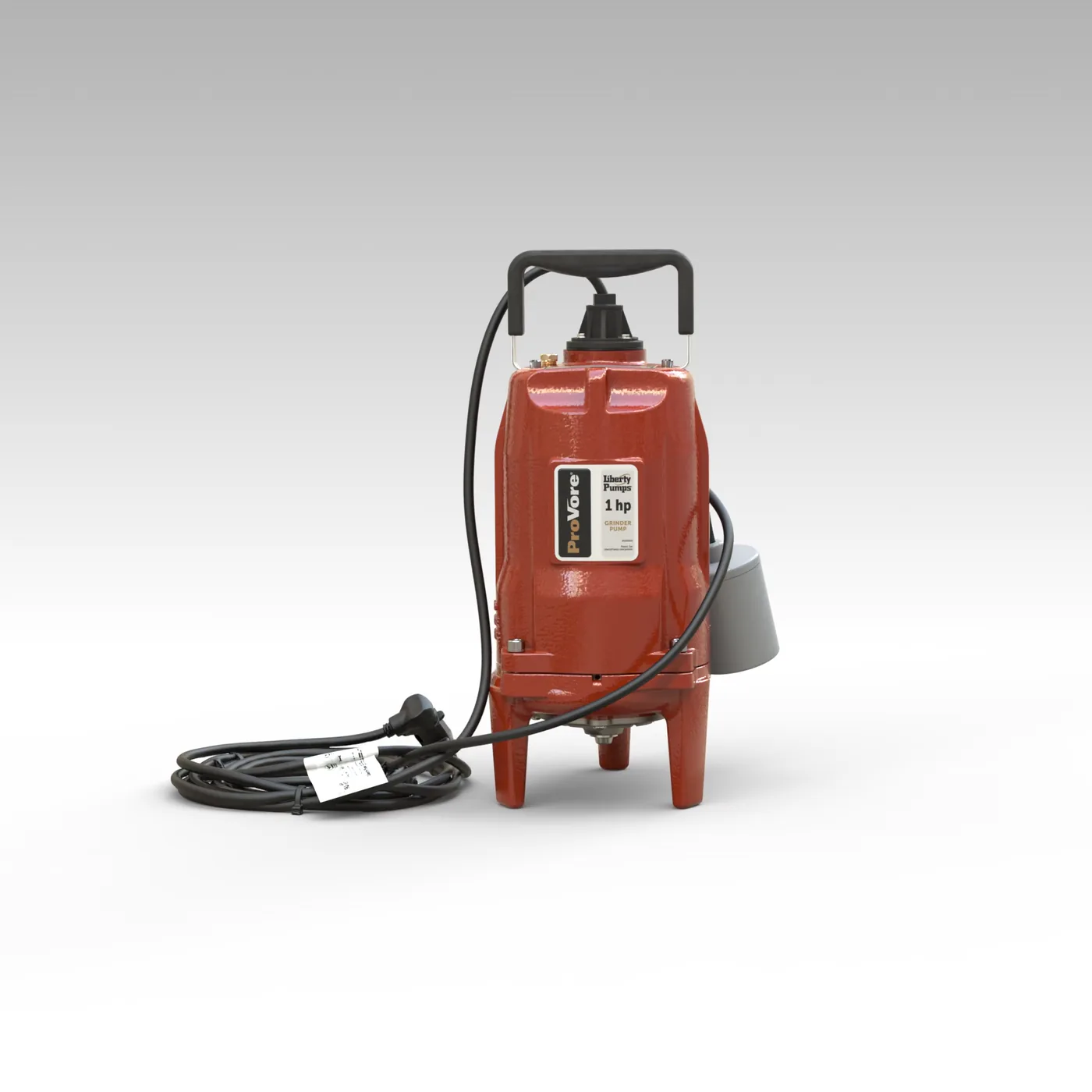

PRG-Series

1 hp Grinder Pump

1 hp
2″ Discharge

Designed for sewage applications. Higher flow rates allow use with 2″ discharge lines.

Operates on standard 115V or 230V 20A circuits.

Features

Heavy cast iron construction 115V or 230V 1-phase V-Slice® Cutter Technology Shreds difficult solids such as feminine products, rags, towels and wipes that can jam a solids handling style pump Hardened stainless steel cutter and plate Oil-filled, thermally protected motor PRG-Series grinders can be used as a replacement pump in 2″ discharge systems using LE40 and LE50-Series solids handling pumps* Vertical switch model available in 115V

*Consult factory with actual application and head specifications prior to replacing LE40 and LE50-Series pumps.
