FL100-Series image 1 of 3

Part Number Voltage Phase Amps Cord Length Float Type

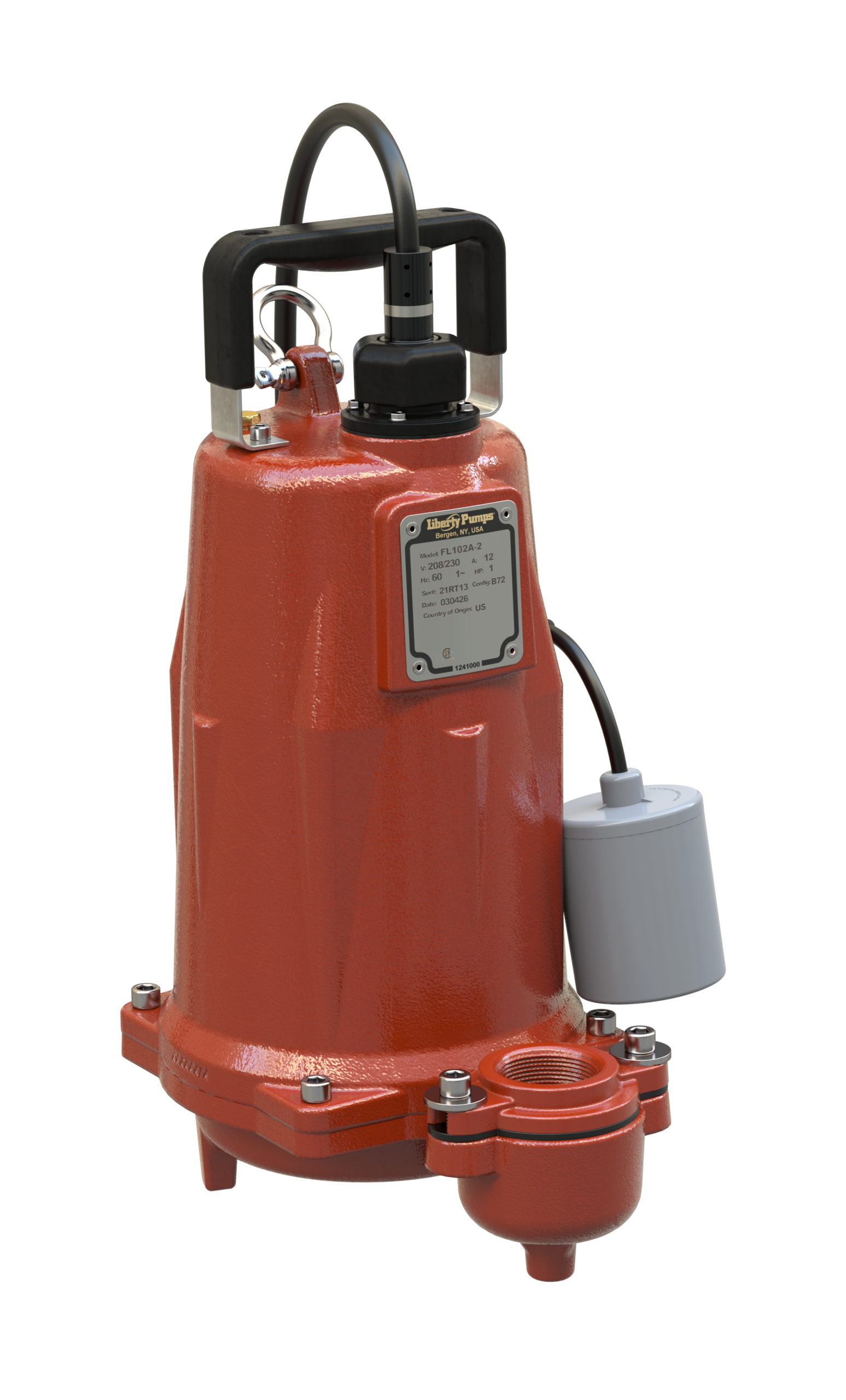

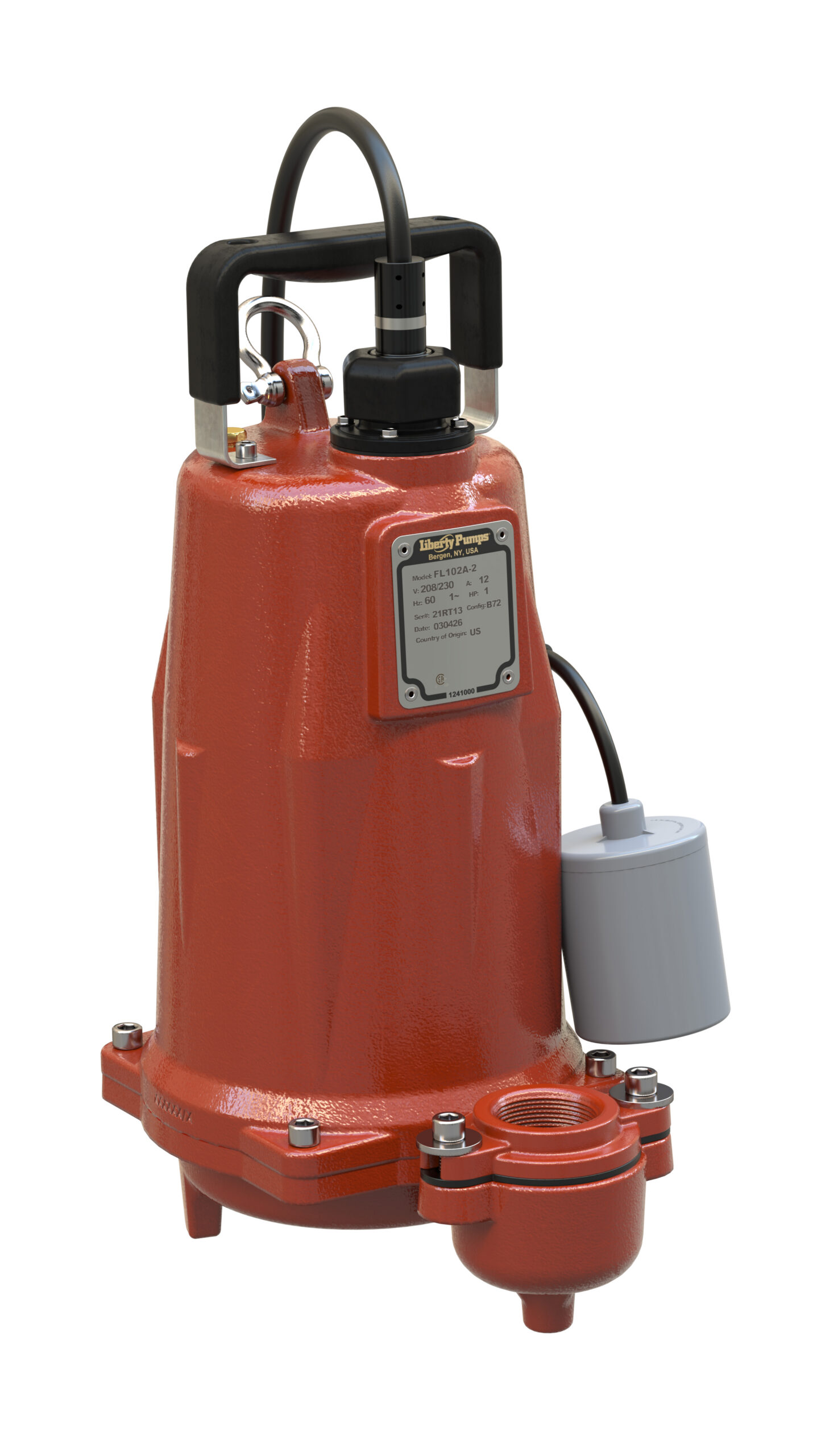

FL102A-3 208-230 1 12 35 Automatic – Wide Angle – Piggyback

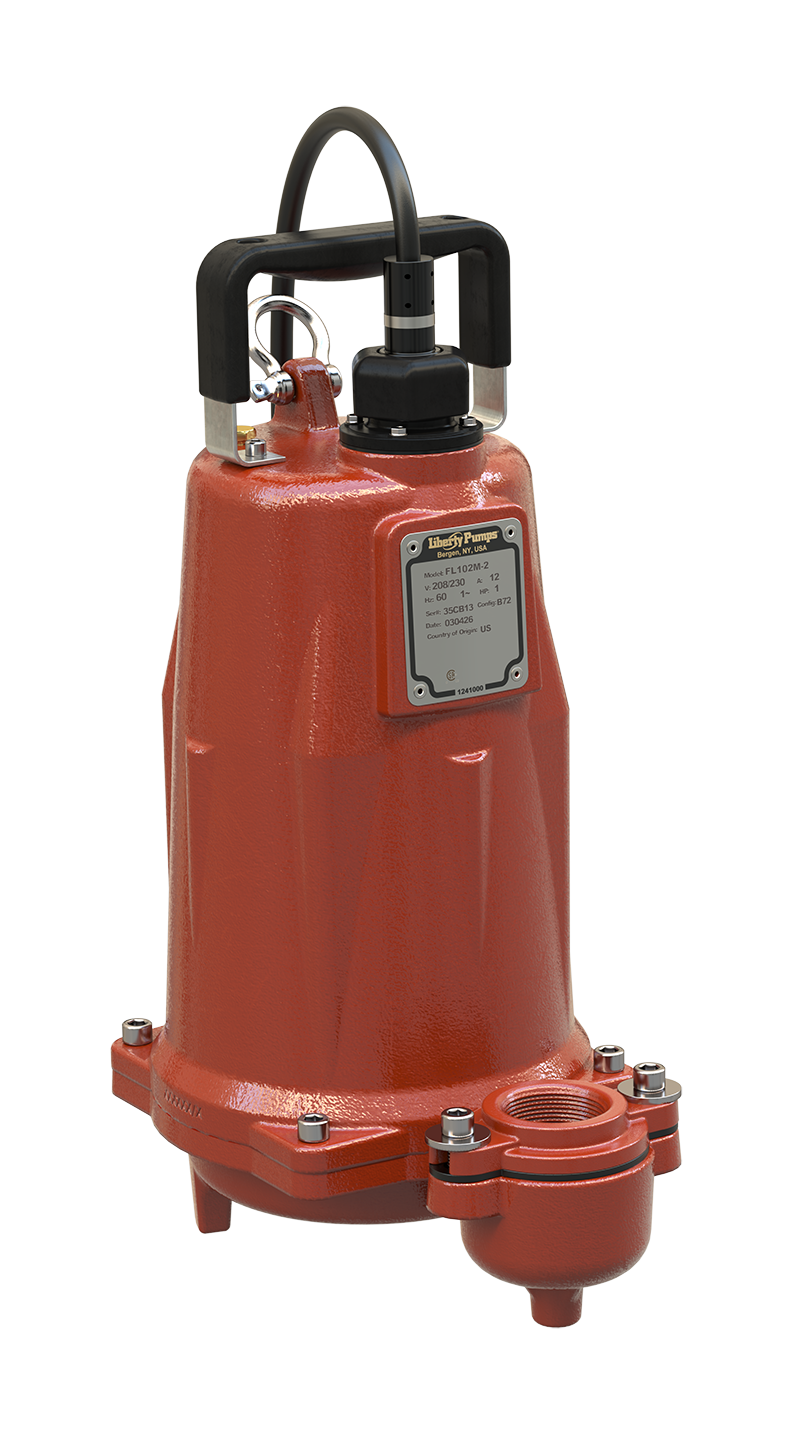

FL102M-2 208-230 1 12 25 Manual
FL102M-3 208-230 1 12 35 Manual
FL102M-5 208-230 1 12 50 Manual
FL103M-2 208/230 3 9 25 Manual
FL103M-3 208/230 3 9 35 Manual
FL103M-5 208/230 3 9 50 Manual
FL104M-2 440-480 3 5 25 Manual
FL104M-3 440-480 3 5 35 Manual
FL104M-5 440-480 3 5 50 Manual
FL105M-2 575 3 3 25 Manual
FL105M-3 575 3 3 35 Manual
FL105M-5 575 3 3 50 Manual

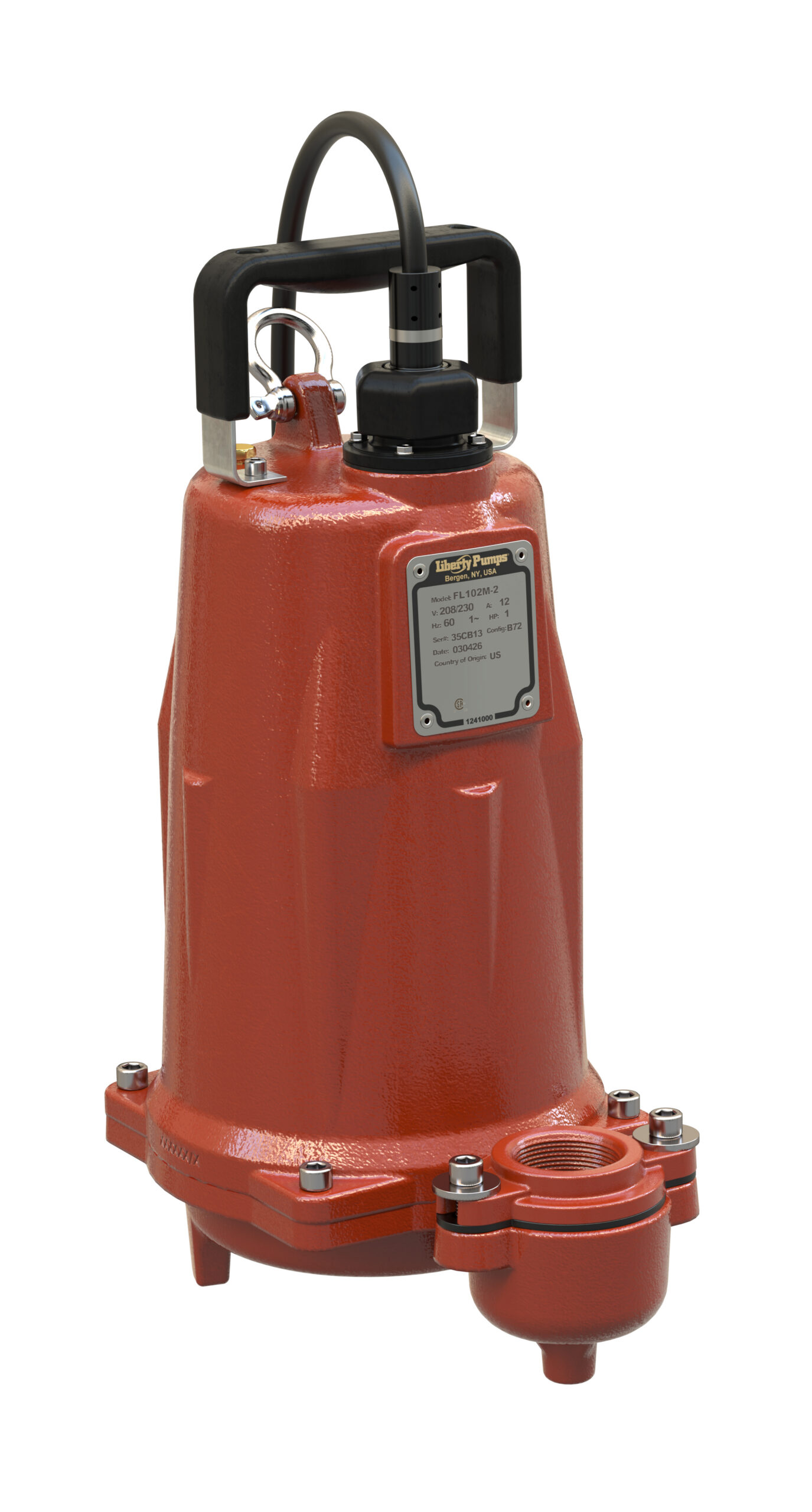

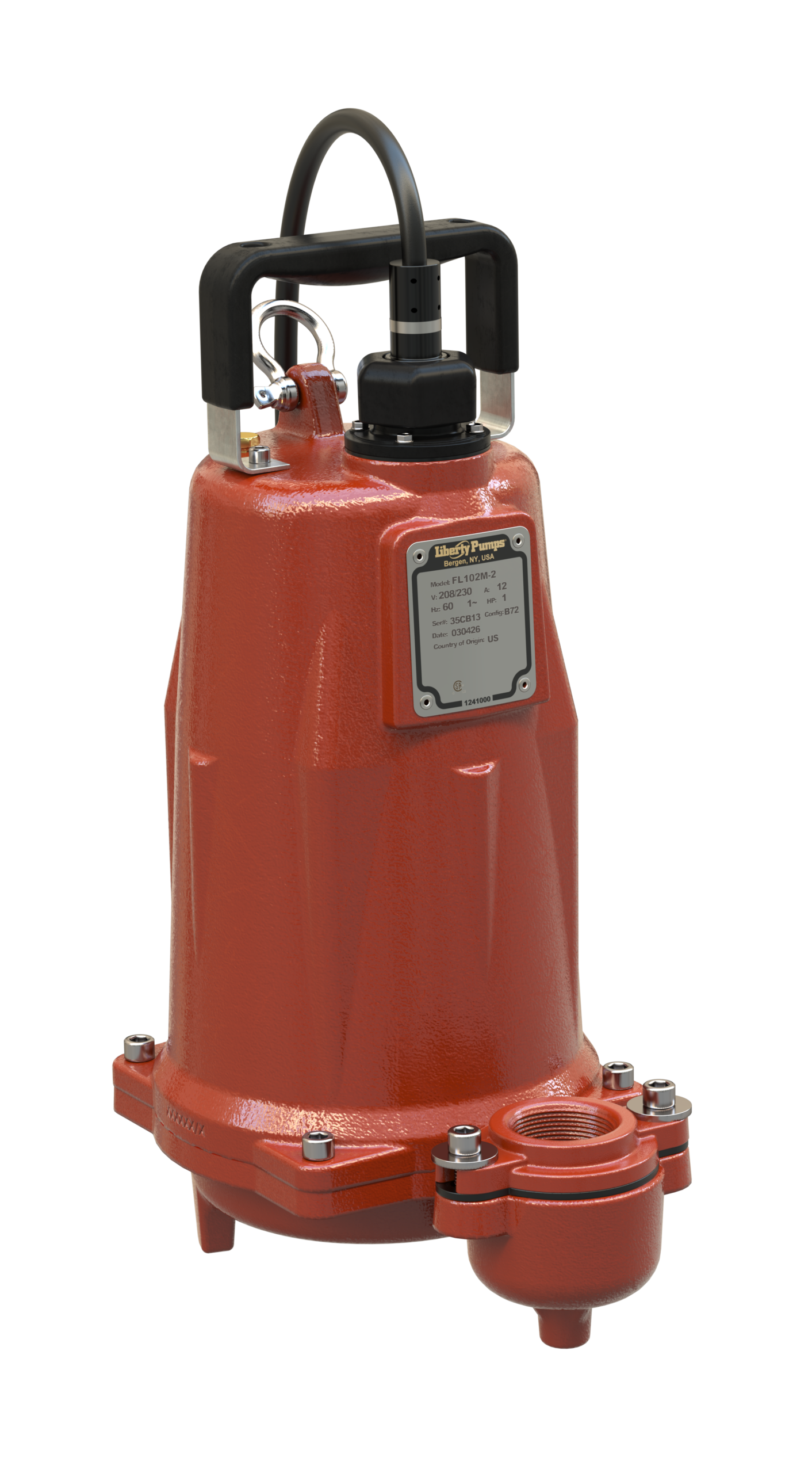

FL100-Series

1 hp High-Head Effluent Pumps

1 hp
1-1/2″ or 2″ Discharge
3/4″ Solids handling

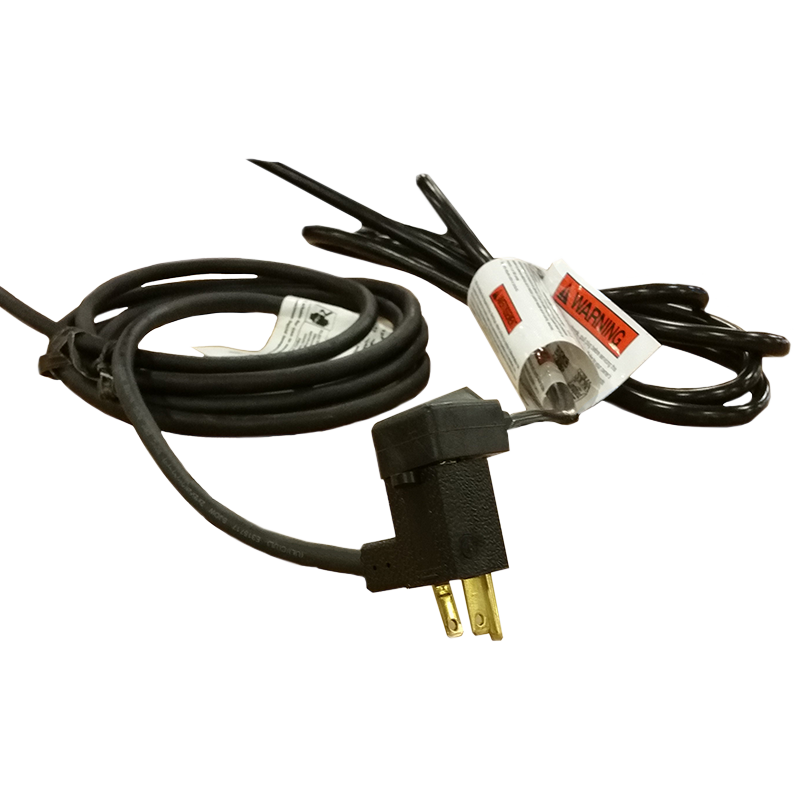

The FL100-Series by Liberty Pumps covers a wide-range of high-head pump applications. Designed with Liberty Pumps unique one-piece cast iron body and quick-connect cords in 25′ standard length.

The FL100-Series by Liberty Pumps is a 1 hp effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The pump features a dual-sized threaded discharge of 1-1/2″ and 2″ for connection to either size pipe. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL100-Series will provide years of reliable performance.

Find a Distributor Contact us

Compatible Accessories

  • GR22-Series

    2″ or 3″ Guide Rail Base

    View Details

  • GR22NS-Series

    Guide Rail Base for Hazardous Locations

    View Details

Related Products

  • FL70-Series

    3/4 hp Mid-Range Effluent Pumps

    View Details

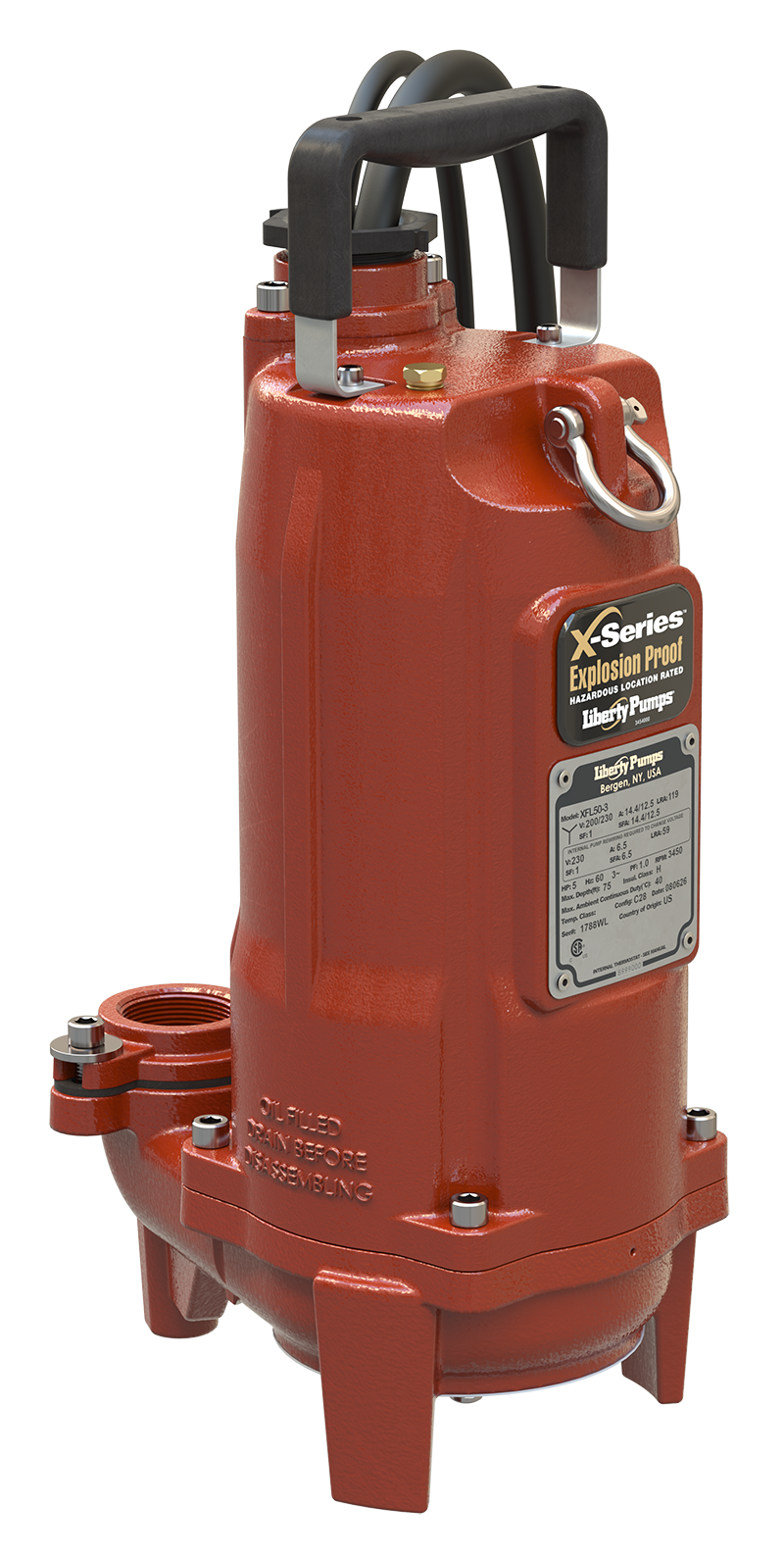

  • XFL100
